ED 2010/2011

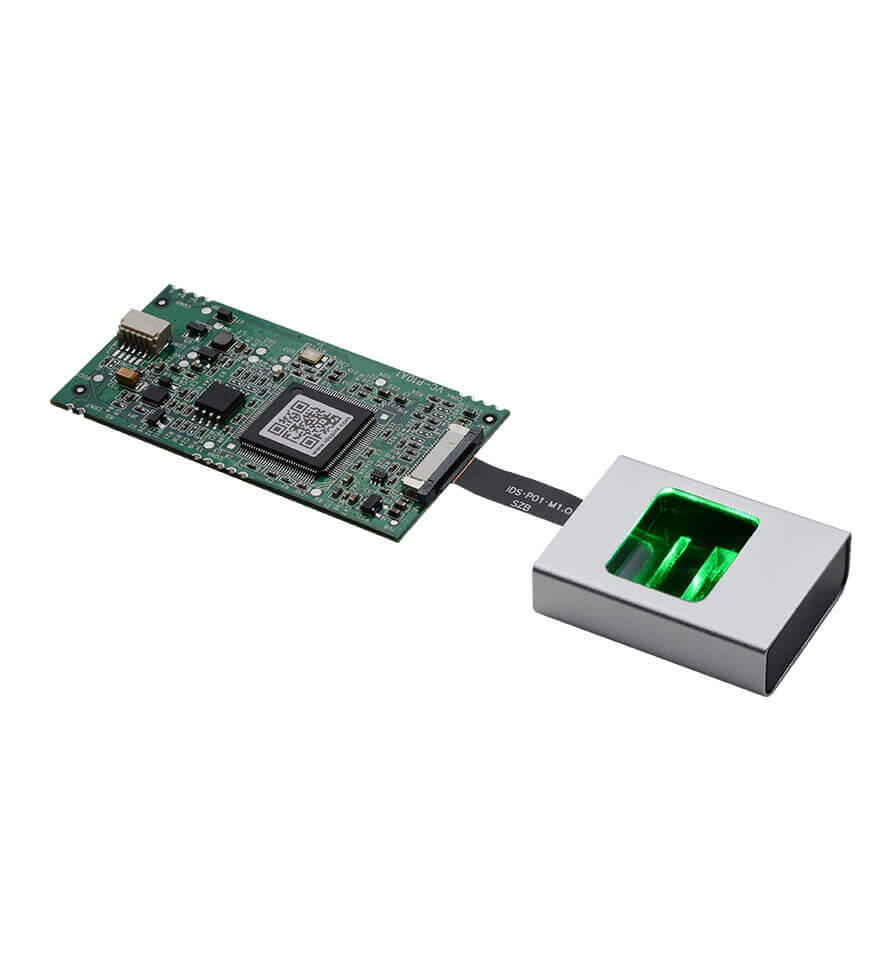

ED 2010/2011 is powerful optical biometric fingerprint embedded module. It not only features core fingerprint sensor technology of 500 dpi high resolution and 10mm ultra-slim optical sensor, but also incorporates high performance algorithm with up to 5000 finger templates. It performs the lowest FAR and FRR and operates at quick verification and identification speed. It is compatible with standard UART/USB interface (optional), which is ideal for various biometric applications in the market.
| SPECIFICATION | ||
|---|---|---|
| Fingerprint Sensor | 10mm Optical Sensor | |
| Image Resolution | 500 dpi | |
| Scan Area | 14 mm x 18 mm | |
| Fingerprint Capacity | 5000 templates | |
| User ID Capacity | 1 user ID max 10 templates | |
| Template Size | 624 bytes | |
| Identification Time | < 1 second (1:N) | |
| Verification Time | < 1 second (1:1) | |
| FAR | 0.01% | |
| FRR | 0.1% | |
| Interface (optional) | UART (Model No. ED 2010) USB (Model No. ED 2011) |
|
| ESD Resistance | Air 8kV, contact 4kV | |
| Operating Temperature | -10oC~50oC | |
| Weight | 21 g | |
| Dimensions | Sensor: 35 mm x 26 mm x 10 mm PCBA: 60 mm x 30 mm x 4 mm |
|
